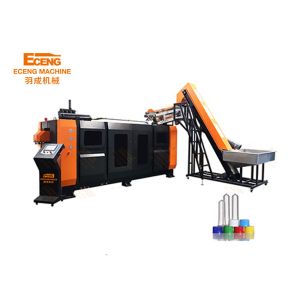

Automatic PET Water Bottle Blowing Machine Electric Servo 10000BPH K4

Name: Automatic PET Water Bottle Blowing Machine Electric Servo 10000BPH K4
Brand: Eceng
Price: 1 USD

Wholesale Automatic PET Water Bottle Blowing Machine Electric Servo 10000BPH K4 from china suppliers

Brand Name : Eceng

Model Number : K4

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Set/Sets per Year

Delivery Time : 60days

Packaging Details : standard export wooden case or according to your requirements

Blow Moulding Type : Stretch Blow Moulding

Voltage : 380V,50HZ

Dimension(L*W*H) : 3.3*1.6*1.9m

Hollow part volume : 2L

PLC Brand : DELTA

Weight (KG) : 3400 KG

Applicable Industries : Manufacturing Plant

Size of the machine : 3.3*1.6*1.9

Contact Now

Automatic Electric Servo 10000BPH PET Water Bottle Blowing Machine K4

Automatic PET Water Bottle Blowing Machine Electric Servo 10000BPH K4

Model Eceng K4
Bottle type specification	Cavity	4
	Max.volume	200ml-2000ml
	Bottle mouth maximum overall diameter	25-29mm NECK
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Capacity specification	Theory output	8000-10000BPH
	Bottle type volume	600ML
	Bottle type weight	13.5g
	Bottle type	Round
Power specification	Light tube quantity	16pcs
	Light tube power	1.25KW
	Maximum heating power	20KW
	All electric machine installation	29KW
	Actual consumption	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2
	Blow bottle pressure	25-45kg/cm2
	Higher -pressure gas consumption	6000Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10℃
	Consumption	8000kcal/hr
	Forzen water flow	120L/min
Machine specification	Machine size	3.61.61.9
Machine specification	Machine weight	4.3ton

Looking for a dependable way to produce drinking water bottles efficiently? Eceng Automatic PET Blowing Machine Electric Servo 10000BPH K4 is the answer. With 4 cavities and advanced servo technology, it can produce up to 10,000 bottles per hour, meeting your business's demand.

Produce high-quality drinking water bottles effortlessly with our Automatic PET Blowing Machine Electric Servo 10000BPH K4. Its state-of-the-art servo system and 4 cavity design offer unmatched speed, precision, and efficiency for your bottle production requirements.

Automatic PET Water Bottle Blowing Machine Electric Servo 10000BPH K4

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
